Product Description

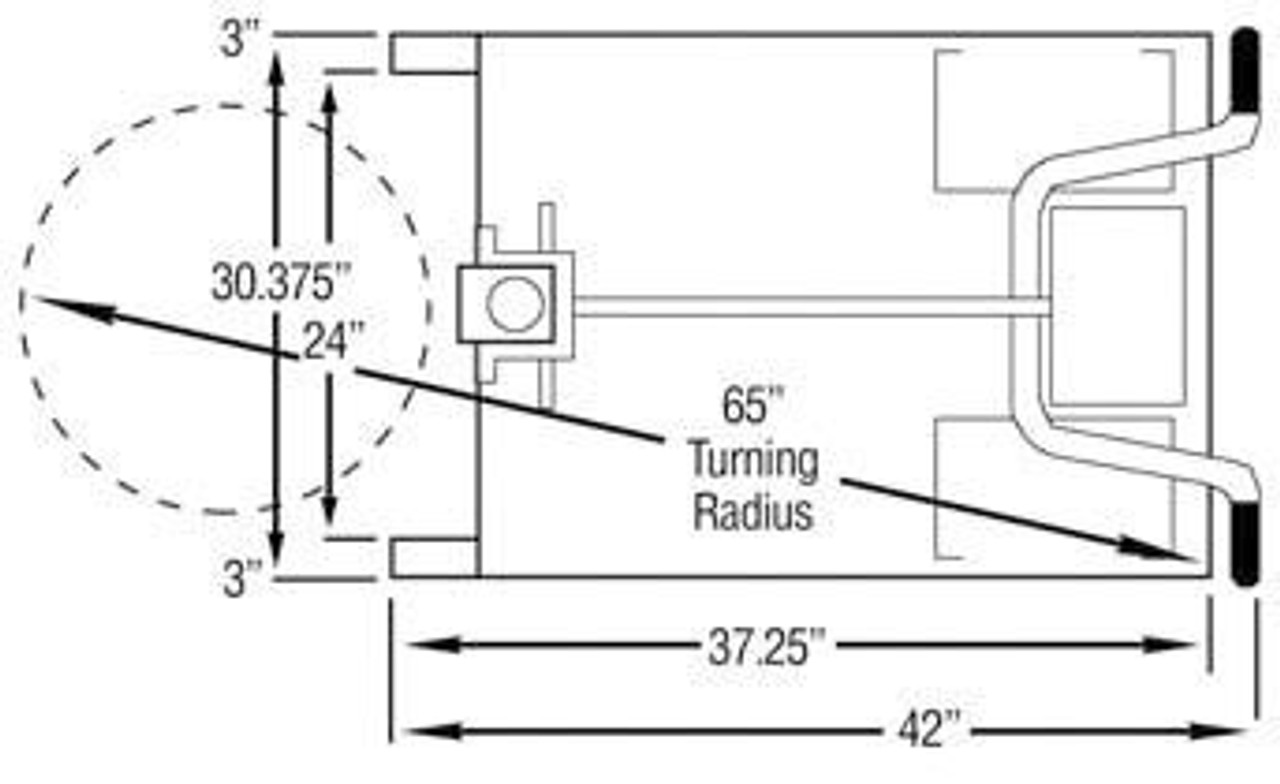

Valley Craft® Roto-Lift™ portable drum handler is battery operated, the counter-weighted unit centers the load between the wheels for maximum balance and safety. The 90 inch drum handler lifts and rotates steel, plastic or fiber drums 14 inch - 24 inch diameter. This battery powered unit has a maximum 71 inch lift height, at 17 FPM (Feet Per Minute), and rotates drums sideways (clockwise) a full 360°. The turning radius is 61 1/4 inches. It uses a standard 12V DC battery (included). The built-in charger plugs into standard 110 VAC grounded outlet.
Counter weighted models are designed to butt directly up against pallets to make loading and unloading safe and effective. Roto-lift Counter-weighted models weigh twice as much as straddle models and require much more effort to position and propel. Unit has 4 inch long legs, 24 inch between legs. Supplied with (34) 13.5 lb counter weights.
Two ratchet belt tighteners and nylon belts hold drum securely. Worm-gear rotating mechanism holds drum at any desired angle. Welded steel frame has single post design for maximum operator visibility. Rolls on 5 inch diameter polyurethane front wheels and 4 1/2 inch diameter rear swivel casters.
- Lift drums up to 800 lb
- Drums can be rotated sideways through 360°
- Drum handler works with steel, plastic, or fiber drums 14 inch - 24 inch diameter
- Max. Lift Ht.: 71 inches
Optional steel-It or stainless steel units are available for food and/or pharmaceutical applications.
