Product Description

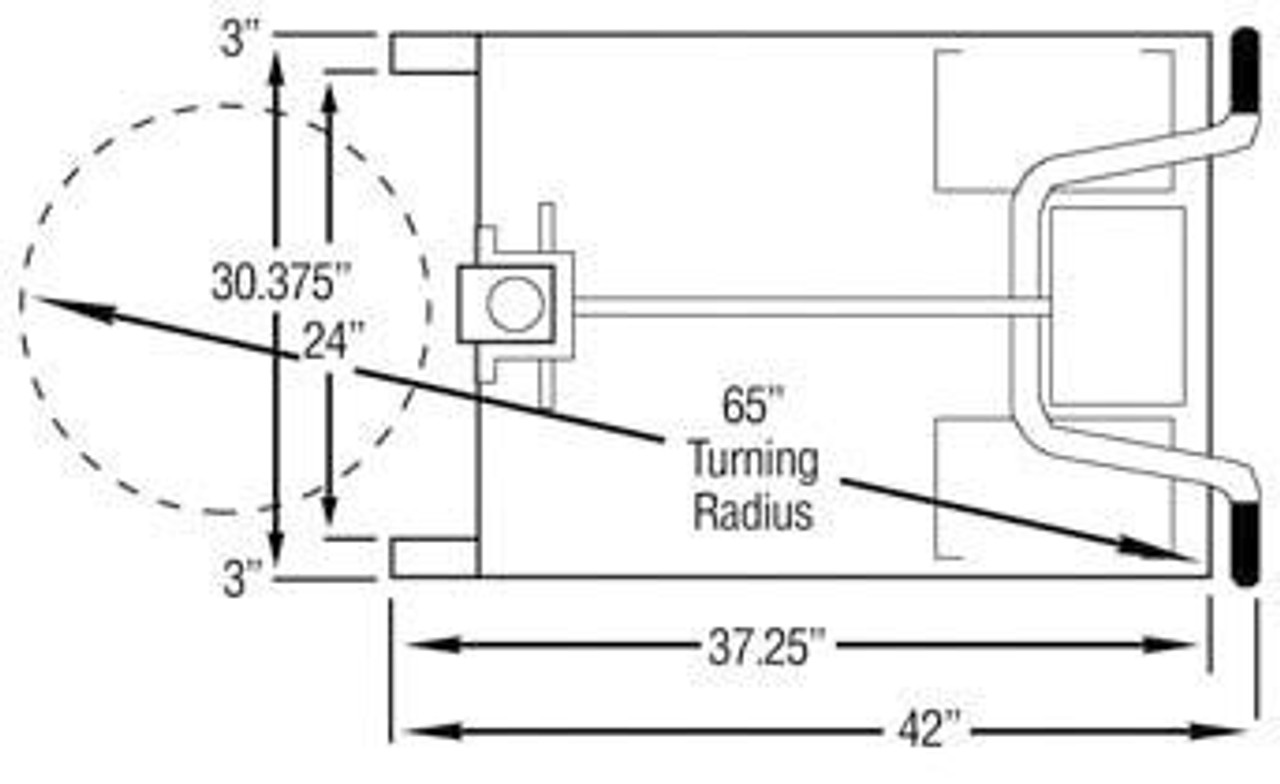

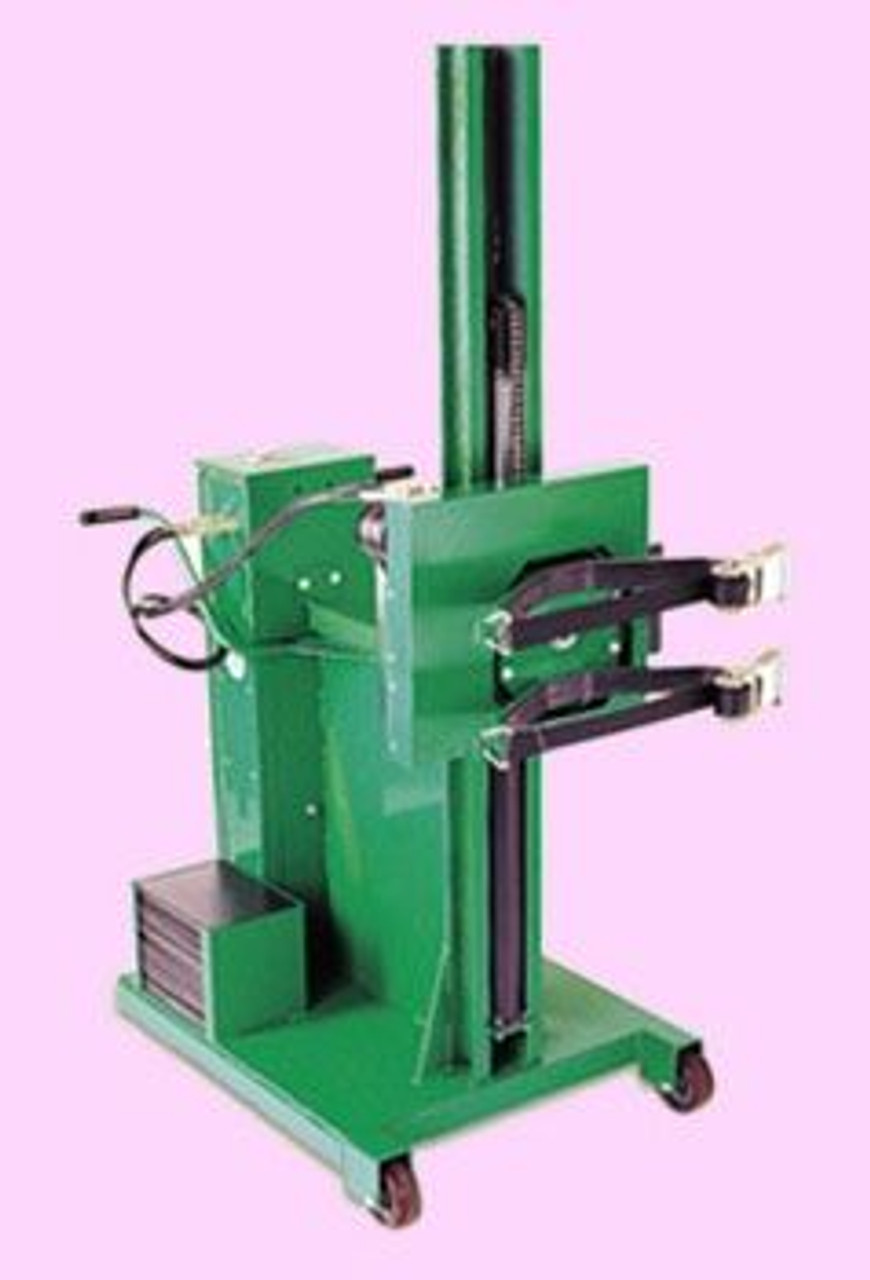

Valley Craft® Roto-Lift™ portable drum handler is air operated, the counter-weighted unit centers the load between the wheels for maximum balance and safety. The 90 inch drum handler lifts and rotates steel, plastic or fiber drums 14 inch - 24 inch diameter. The air powered unit has a maximum 71 inch lift height, at 17 FPM (Feet Per Minute), and rotates drums sideways (clockwise) a full 360°. The turning radius is 61 1/4 inches. The air powered model is ideal for spark-resistant applications and requires an outside air source. It is supplied with filter, regulator and lubricator.
Counter weighted models are designed to butt directly up against pallets to make loading and unloading safe and effective. Roto-lift Counter-weighted models weigh twice as much as straddle models and require much more effort to position and propel. Unit has 4 inch long legs, 24 inch between legs. Supplied with (34) 13.5 lb counter weights.
Two ratchet belt tighteners and nylon belts hold drum securely. Worm-gear rotating mechanism holds drum at any desired angle. Welded steel frame has single post design for maximum operator visibility. Rolls on 5 inch diameter polyurethane front wheels and 4 1/2 inch diameter rear swivel casters.
- Lift drums up to 800 lb
- Drums can be rotated sideways through 360°
- Drum handler works with steel, plastic, or fiber drums 14 inch - 24 inch diameter
- Max. Lift Ht.: 71 inch
Optional steel-It or stainless steel units are available for food and/or pharmaceutical applications.
