Product Description

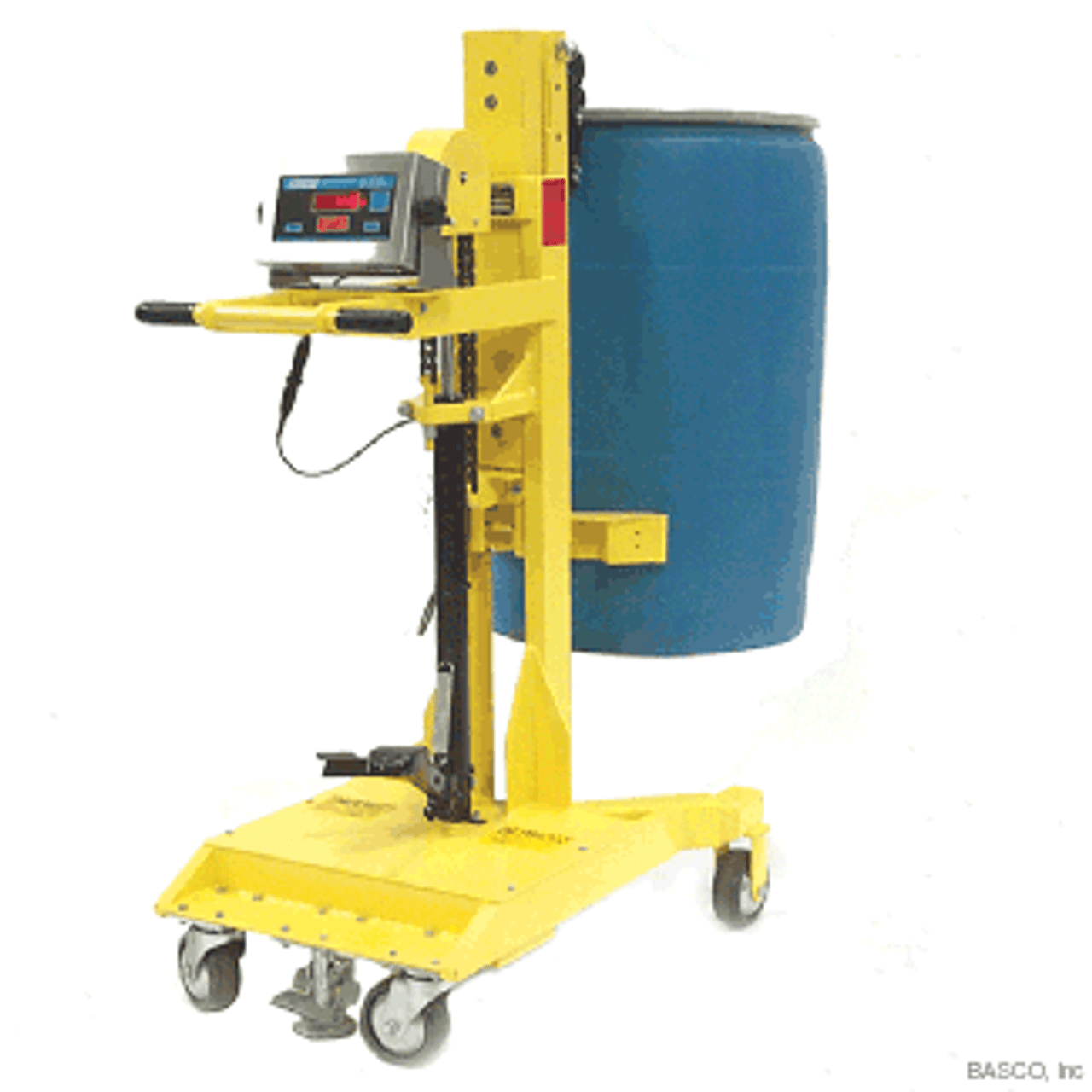

The compact design and straight legs enables this drum handler to roll through standard doorways and tight aisles with steel, plastic and fiber drums with ease. This drum handler places drums on and off pallets and floor scales by approaching the corner. The non-sparking unit has non-sparking clamp with rubber belt and anti-static grounding strap.
Capable of handling drums nestled closely together. Prevents strained backs, pinched fingers and other injuries associated with manhandling drums on and off pallets.
- Lift, transport and lower drums into narrow spaces
- Handles most standard 30, 55 & 85 gallon drums
- Only 27 inches wide, plus short legs for better reach
- 600 lb capacity
One stroke of the foot pump raises or lowers the drum 3/4 inch.
Maximum lift height is 20 inches off the floor.
Step Down Floor Lock keeps the unit from rolling away on un-level surfaces.
Darcor ergonomic casters: 2 inch x 5 inch (2) swivel, (2) rigid.
Note: Drum must have a 3/16 inch or higher top rim to engage with the clamping mechanism. Drums must also have a minimum height of 21 inches and a maximum height of 54 inches.
