Product Description
This unique chemical pump uses a magnetic coupling, there is no physical connection between motor and pump for very quiet and reliable service. Two permanent ceramic magnets drive the pump. One is attached to the motor shaft, the other to the pump impeller. This 28 inch magnetic drive pump tube with 1 2/3 inch diameter (widest point) fits 15 - 30 gallon drums. Ruggedly built for continuous service, the self-priming, vibration-free, pump tube is constructed of CPVC Polypropylene, Viton® seal, Carpenter 20 shaft, with a discharge connection for a 3/4 inch inner diameter hose.
This pump tube has a maximum flow of 35 GPM, maximum head gravity 39 feet, and maximum specific gravity 1.86. Handles liquid viscosity up to 4000 SSU (850 cps), with a maximum operating temperature of 130° F. Suggested handling of acids, alkalies and all types of corrosive aqueous solutions to 130° F. Always check chemical compatibility for product being pumped.
- Flows to 14 GPM
- Leakproof, continuous duty rated
- Self priming
- Motors (SKUs: TE, TD, or AM, sold separately) can be switched from pump to pump quickly and easily, so one motor can serve several pump tubes.
- Optional Hand Flow Regulator (SKU FR120) for hand control flow and filling of containers without spilling is available.
- Bung Adapter (sold separately) is available. Please order with pump.

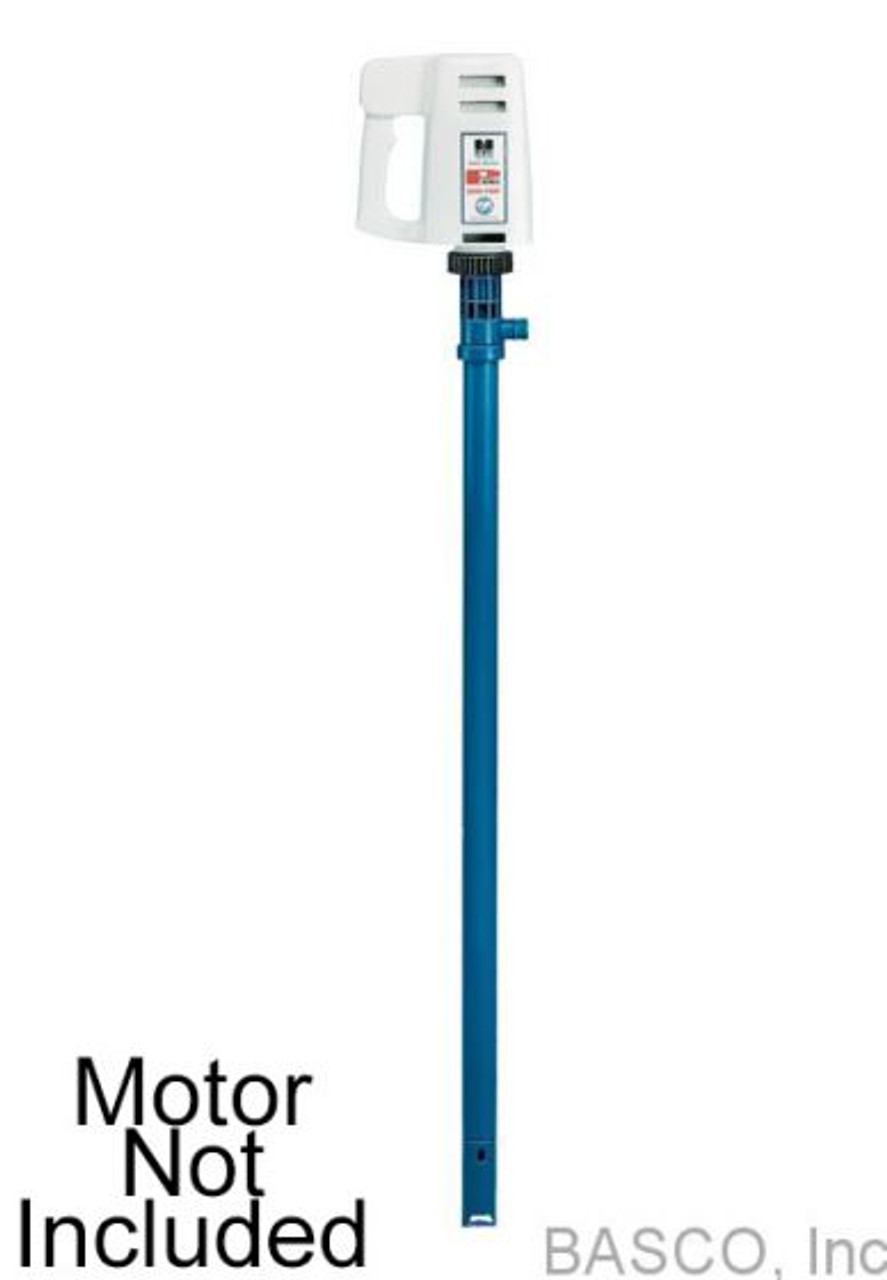

Picture Shown Above is GMC40 Pump Tube with TD Motor (Motor must be purchased separately)
