Product Description

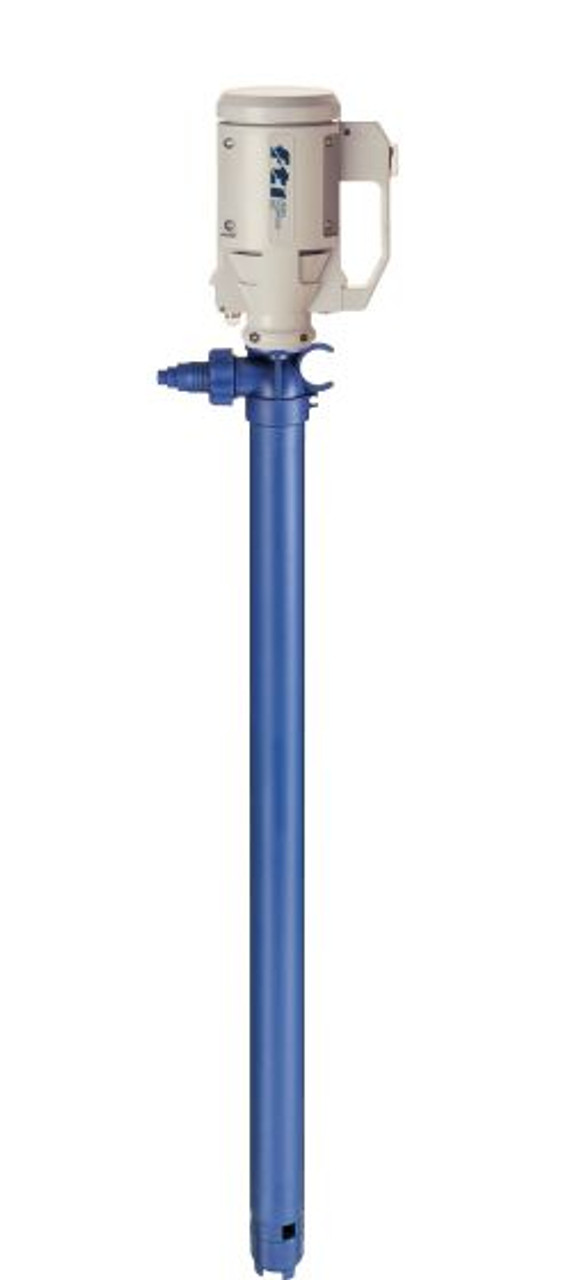

The Finish Thompson chemical pump is a high performance, seal-less drum pump designed for container to container transfer of acids, corrosives and chemicals.
This 1/2 HP ODP (Open Drip-Proof) Motor is designed for non-corrosive environments, it is 110V, 50/60 Hz, 1-Phase. Handle has built-in switch, thermal overload protection with manual reset, 12 foot cord with plug. The open drip proof motor has a ventilation opening guarded to prevent falling water from entering the motor.
- Designed for free-flowing liquids up to 500 cps (centipoise) viscosity and 1.8 specific gravity
- 40" long polypropylene pump tube with Inconel (alloy 625) shaft and 2" diameter fits 2" bung openings
- Internals: Inconel (alloy 625), polypropylene, FKM (Fluoro Rubber), PVDF (Polyvinylidene Fluoride), and PTFE (Polytetrafluoroethylene)
- Seal-less design has 30 minute run-dry capability without damage
- Features double suction impeller providing high flow
- Polypropylene pump tubes have convenient variable orifice discharge fitting and 1" hose barb
Caution: When pumping flammables, use only stainless steel pump tube and explosion proof motor. Hose and grounding kit are also required. See static protection hose kits found in Accessories for Finish Thompson Pumps and Bonding and Grounding Wires.
Product Videos
Custom Field
Motor Description ODP 1/2 HP
Max. Viscosity 500 cps
Weight 13 lbs
Shaft Polypropylene
Length 40"
Brand Finish Thompson Inc.
