  • Control Package - 460V
  • Control Package - 460V

    • Control Package - 460V

    $2,150.00
    (No reviews yet) Write a Review
    SKU:
    CP-456-3-460
    Weight:
    100 lbs
    Color:
    Gray
    Motor Description:
    TEFC
    Adding to cart… category.add_cart_announcement

    Product Description

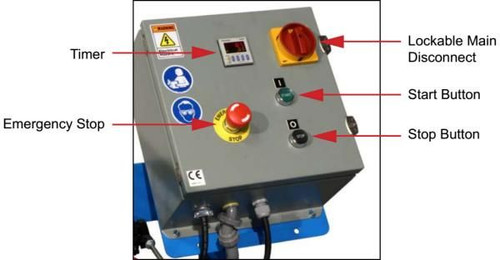

    The Control Box controls Start and Stop functions, Timer, Variable Speed, Red Emergency Stop Button, Lockable Main Disconnect, 24V DC Control Supply, and Wire Terminals for safety interlock switch. Choose this control box when a 460 motor voltage is desired with the Morse Hydra Lift Drum Roller, SKU 455.

    For OSHA compliance in the USA, see OSHA subpart O.1910.212 (a) (4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place." One way to accomplish this is with a Morse enclosure (Part Number GEK-456-E3) with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

    Install all Morse Rotators in accordance with local requirements for enclosure and safety interlock, etc.

    Product Videos

    Custom Field

    Weight 100 lbs
    Color Gray
    Motor Description TEFC
